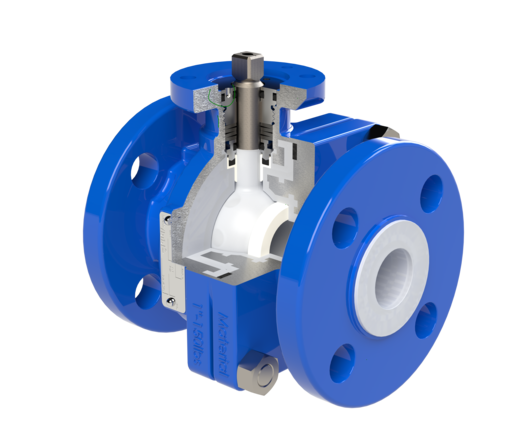

The SBV ball valve was developed for demanding industrial applications involving corrosive, diffusing, toxic, or sensitive liquids and gaseous media. The uniform lining with a wall thickness of at least 3 mm, along with the optimized internal geometry, minimizes dead spaces and provides high resistance to aggressive media.
The innovative, self-adjusting sealing system ensures a reliable seal and a long, maintenance-free service life even under demanding process conditions. The robust metal-to-metal body construction with dynamic stem sealing meets the requirements of TA-Luft (VDI 2440 / EN ISO 15848-1) and ensures maximum operational reliability.
Thanks to its modular design, the SBV ball valve can be flexibly adapted to different process requirements. Various ball geometries, lining materials, and optional configurations enable optimal design for numerous applications in the chemical, pharmaceutical, environmental, and process industries. Depending on the requirements, solutions are available for flow control, pressure relief, or the reduction of media residues.

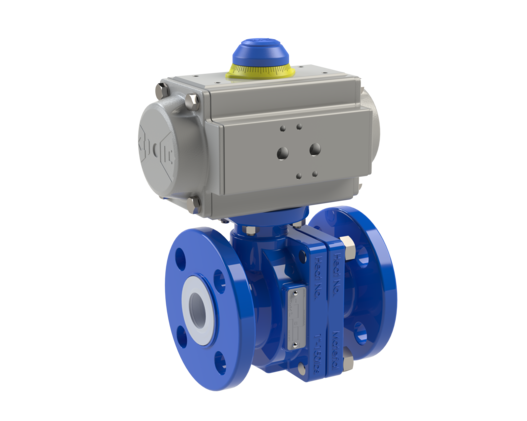

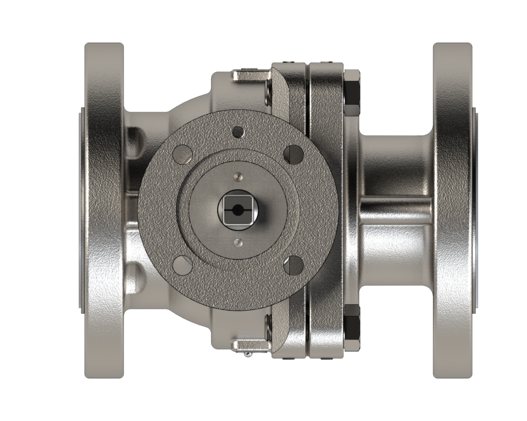

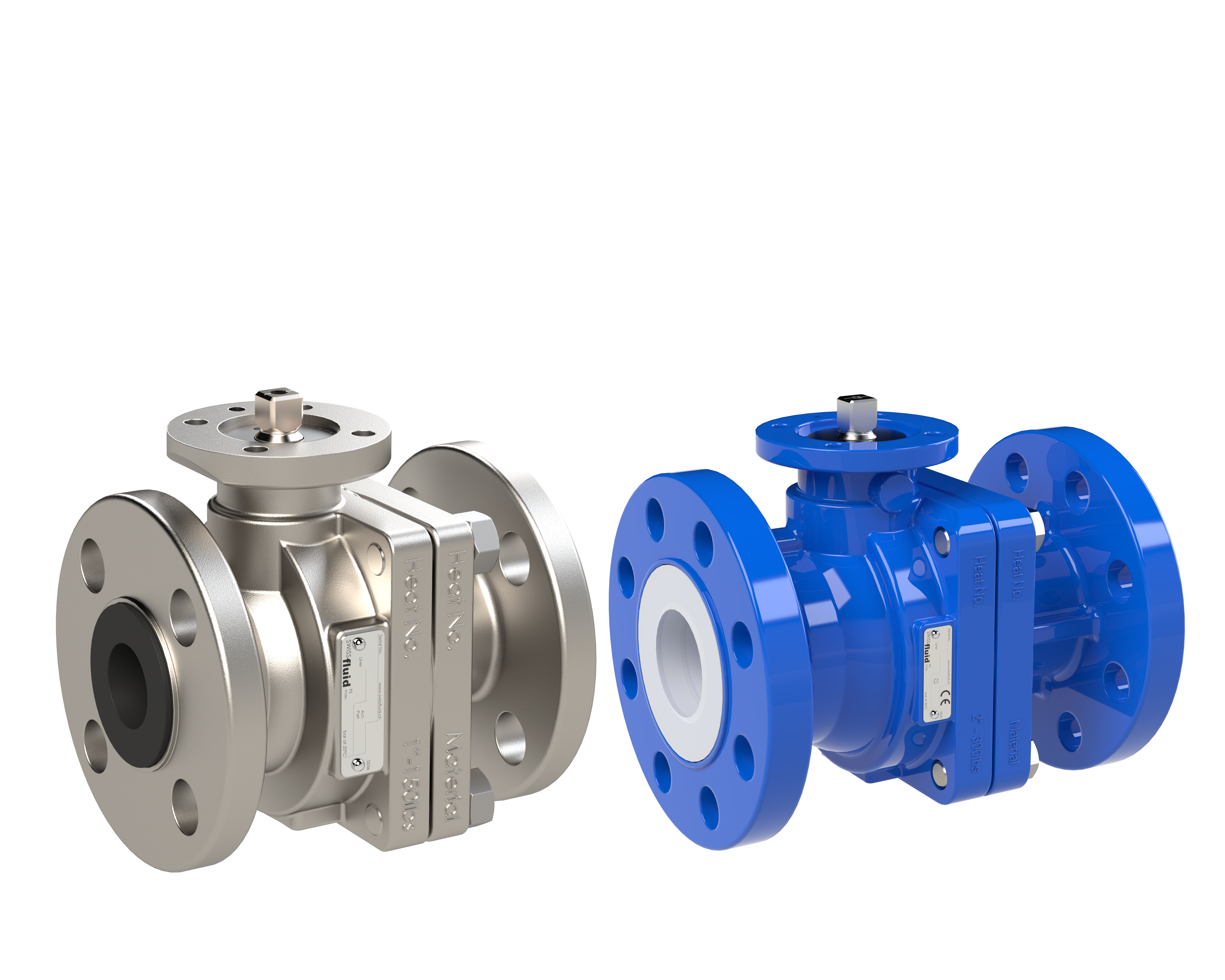

Thanks to the ISO 5211 mounting flange, the ball valve can be easily automated. It is available with DIN or ANSI flanges, cast steel or stainless steel bodies, and in full-bore or reduced-bore configurations, offering a reliable solution for shutting off and regulating demanding media.
