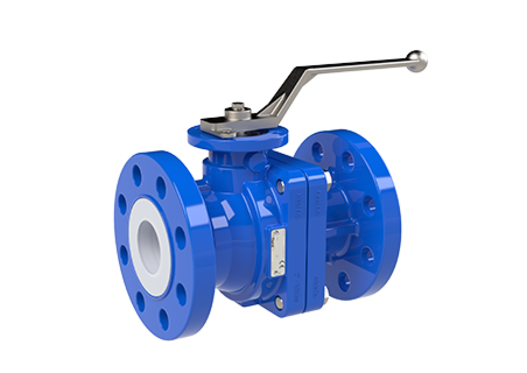

SBV Class 300
Ball Valves

NPS 1" – 4" Full Port

The SBV series is a lined ball valve designed for reliable shutoff and flow control in highly corrosive or hazardous liquid and gaseous service.

Offered in both DIN and ANSI configurations, it can be directly mounted to a variety of topworks such as a hand lever, quarter-turn gearbox, or pneumatic and electric actuation.

Constructed with the highest quality materials, this valve is FDA-compliant, Class VI bubble-tight, with zero fugitive emissions.

Iso Flange

Upper flange conforming to ISO 5211 for direct mounting of actuators, which simplifies integration into automated systems. No ISO mounting kit required.

Metal-on-Metal

The valve body halves are metal-to-metal (self-adjusting
permanent preload), which ensures greater reliability during temperature fluctuations; the heavy-duty, robust design is maintenance-free and guarantees easy grounding of the valve for ATEX applications.

Sealing System

The innovative, self-adjusting sealing system ensures reliable, high-performance operation even under critical conditions—with extended, maintenance-free cycles. The latest TA-Luft zero-emissions certification (EN ISO 15848-1), which guarantees environmental safety and compliance.

Low-dead-space design

Thanks to the design with minimal dead space, less fluid remains inside the valve—ensuring maximum process reliability, hygiene, and easy cleaning. Swissfluid’s SMART ball seats not only eliminate dead space but also reduce wear.

product.detail.main-features.title

Maintenance-free spindle seal requiring no readjustment

The preloaded spindle seal with a disc spring eliminates the need for external readjustment of the packing and reduces the associated risk of leakage. Complies with TA-Luft standards as shipped from the factory.

One-piece duplex ball and spindle

Forged from a single piece of duplex stainless steel, 25% stronger than ductile iron. The overload protection is located outside the valve and is designed to prevent leaks.

Metal-Sealed Housing Connection

The pipeline forces are absorbed by the flange. This prevents thermal expansion from being transmitted to the lining, the seats, or the stem seal. The valve remains leak-tight throughout its entire service life.

Housing designed for maximum durability

The housing, made of 1.0619 cast steel, offers an extended operating temperature range and greater strength than ductile iron. The 1.4408 cast stainless steel version offers high corrosion resistance.

Direct ISO 5211 drive connection

The drive connection allows for direct mounting of a drive without an additional mounting kit. Lower weight, more compact design, and no hysteresis in the control loop.

product.detail.operating-conditions.title

product.detail.operating-conditions.subtitle
product.detail.operating-conditions.pressure 1 mbar to 50 bar
0.01 psi to 725 psi
product.detail.operating-conditions.temperature −40 °C to +200 °C
−40 °F to +400 °F

The SBV Class 300 ball valve was developed for demanding process applications involving corrosive and aggressive media. Thanks to its robust design and self-adjusting sealing system, it ensures a consistently reliable seal and a long, maintenance-free service life—even under high-pressure conditions.

The high-quality PFA lining, with a minimum thickness of 3 mm, reliably protects the body from corrosion and reduces dead spaces to a minimum thanks to its optimized internal geometry. The metal-on-metal housing design and the dynamic stem seal meet the requirements of TA-Luft (VDI 2440 / EN ISO 15848-1) and ensure maximum operational safety.

The Class 300 version is suitable for higher pressure ratings up to 50 bar / 725 psi and is designed with full bore for optimal flow rates. The ISO 5211 mounting flange enables easy automation with pneumatic or electric actuators, making the ball valve a versatile solution for chemical and industrial process plants.

product.detail.technical-details.title

Implementation ANSI
Nominal Sizes NPS 1" – 4" full bore
Flanges ASME B16.5 RF
CL 300
Overall Length ASME B16.10
Body ASTM A216 WCB, signal blue
ASTM A351 CF8M
Lining PFA, PFA-AS (conductive),
PVDF, ETFE
Ball PFA, PFA-AS-coated (conductive),
PVDF, ETFE

product.detail.variants.title

Housing Type

Cast Steel | Stainless Steel

Free Wave
Hand lever
Automatic Return Lever
Manual transmission
Automated
Standard

Full bore, PFA-encapsulated. Wide open. No drama, no pressure drop, no excuses.

V-Port

Notch-cut characterized flow. Modulates like a control valve — without acting like one.

CS ball with opening (C-section)

Cross-section cavity vent. No trapped media. No thermal pressure surprises.

C-Ball

Slurries, fibers, crystallizing media. Designed to let it pass — not jam the cavity. DN15 – 50 / NPS ½” – 2”

Ceramic Ball
VH Relief Hole

With vent hole, for pressure relief on the inlet side

Solid Alloy

Titanium, Hastelloy, or your specified exotic. When PFA isn’t enough — bring metal.

product.detail.options.title

Pneumatic Actuator
Electronic Transponder
Electric/Pneumatic Positioner
Solenoid Valve
ISO Mounting Kit

For direct mounting of automation components

Shaft Extension

To create more space between the pipe and the surrounding area, for insulation, or other purposes

Grounding cable
Security Lock

Hand lever on ISO flange with safety lock

Custom Paint Job
electric drive
